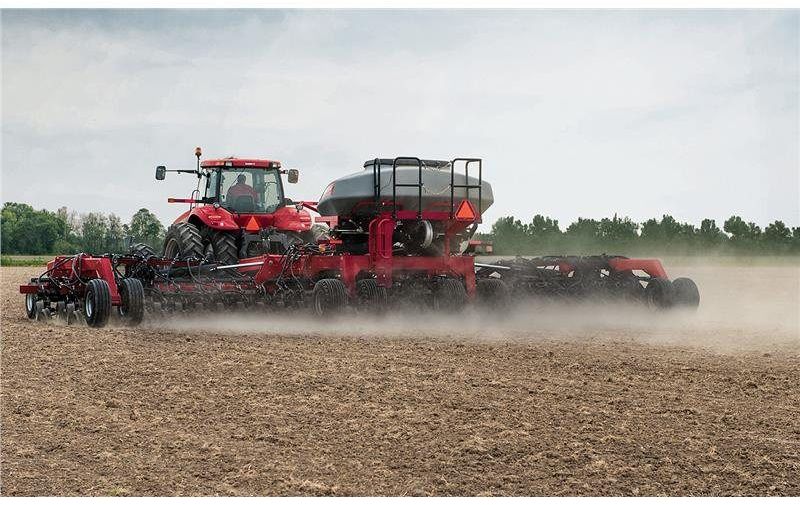

Case IH PRECISION DISK 30
Contents:
Dimensions
| Basic Weight, Maximum | 24499.97 lb (11113 kg) |
| Basic Weight, Minimum | 22200.55 lb (10070 kg) |
| Number Of Furrows, Maximum | 48 |
| Number Of Furrows, Minimum | 36 |
| Transport Height- Maximum | 11.91 ft in (3.63 m) |
| Transport Height- Minimum | 11.91 ft in (3.63 m) |
| Transport Width- Maximum | 14.51 ft in (4.42 m) |
| Transport Width-Minimum | 14.01 ft in (4.27 m) |
| Variants Available | 2 widths, 2 row spacings |
| Working Width- Maximum, | 29.99 ft in (9.14 m) |
| Working Width- Minimum | 29.99 ft in (9.14 m) |
Configuration
| Seeding Method | No-Till disk |
Primary Opener Assembly
| Opener Type | Single 22.5 disk - no-till |
Tires And Frame
| Center Frame Tire | 31 x 13.5x15, 11L x 1 5- 8PR |
Primary Opener Assembly
| Depth Gauging System | Single gauge wheel |
Configuration
| Row Spacings | 7.5, 10 (191, 254) in (mm) |
| Seed Supply | Air Cart |
Tires And Frame
| Wing Frame Tire | 31 x 13.5 x 15 |
Primary Opener Assembly
| Seeding Depth, Maximum | 3.6 in (89 mm) |
| Down Pressure, Minimum | 249.2 lb (113 kg) |
Configuration
| Frame Sections | 3 section |
Primary Opener Assembly
| Down Pressure, Maximum | 509.3 lb (231 kg) |
Tires And Frame
| Number Of Ranks | 2 |
Configuration
| Transport Folding Method | vertical folding |
Tires And Frame
| Distance Between Ranks | 61 in (1549 mm) |
Primary Opener Assembly
| Type Of Fertilizer Delivery | Single shoot |
Engine
| Engine Make | Case IH |
| Engine Model | Precision Disk 30 |
Wheels
| Press Wheels Mounted On Opener Or To Frame | Mounted on opener |
| Press Wheel Description | 1 x 12 in. tilted tire |
